Stability:
· Cab designby SIP point , conform to EN- ISO 5353, ensure compartment with great
comfortable and fatigue- free operating.
· Leak-free O-rings imported from Japan NOK face sealfittings reduce leaks
· Drive axleand steering axle , transmission made by TCM technology , float type structure
achieve a flexible connection between engine and frame , reduce vibrationsgreatly. JAPAN
SHIMADSU type hydraulic pump with low noise
· The cylinder have dual safety system --- withlowering safety valve and lowering limited valve.
Safety:
· Advanced multifunction LCD/digital display providesfast and accurate Monitoring truck status.
· Thecylinder offers new design by dual safety system --- with lowering safety valveand lowering limited valve.
· The electric F/R lever with neutral safety startsystem.
· Anintelligent sensor and buffer monitoring system: with safety checkvalve to absorb the mast drop speed
automatically to avoid crashing the floorand damaging goods.
Ergonomics & Efficiency:
· Wide view mast, clear visibility.
· Cowl-mounted hydraulic levers design offers bigoperation space.
· Adjustable tilt steering column offers the mostcomfortable operator position.
· The optional of the magnetic electric F/R controllever ,simple for operation and less efforts.
· Low noise<82AB(A) : sound absorbing material mounted within the front engine cover,with
.air intake system on the back pillars of overhead guard .maximum reducesthe noise.
· New designed aluminum structural radiators.
Easy Maintenance:
· Insulatedengine cover with gas-filled cylinders with automatic locking device to assistin opening and
preventing the cover from unexpected closing. The cover canopens up to 78-90 degrees.
· Steeringaxle uses the traverse tanks. The compact construction with large openspace, easy to maintain.
· Use integral sealed electric circuitry. Optimizedthe control system and easy maintenance.
· Floor board are easily removed, reduce time forquick service assess.
capacaity: from 1.5 MT to 42MT series
types: diesel forklift, gasoline forklift, electric forklift
fork length: 900,1000,1100,1170,1270mm

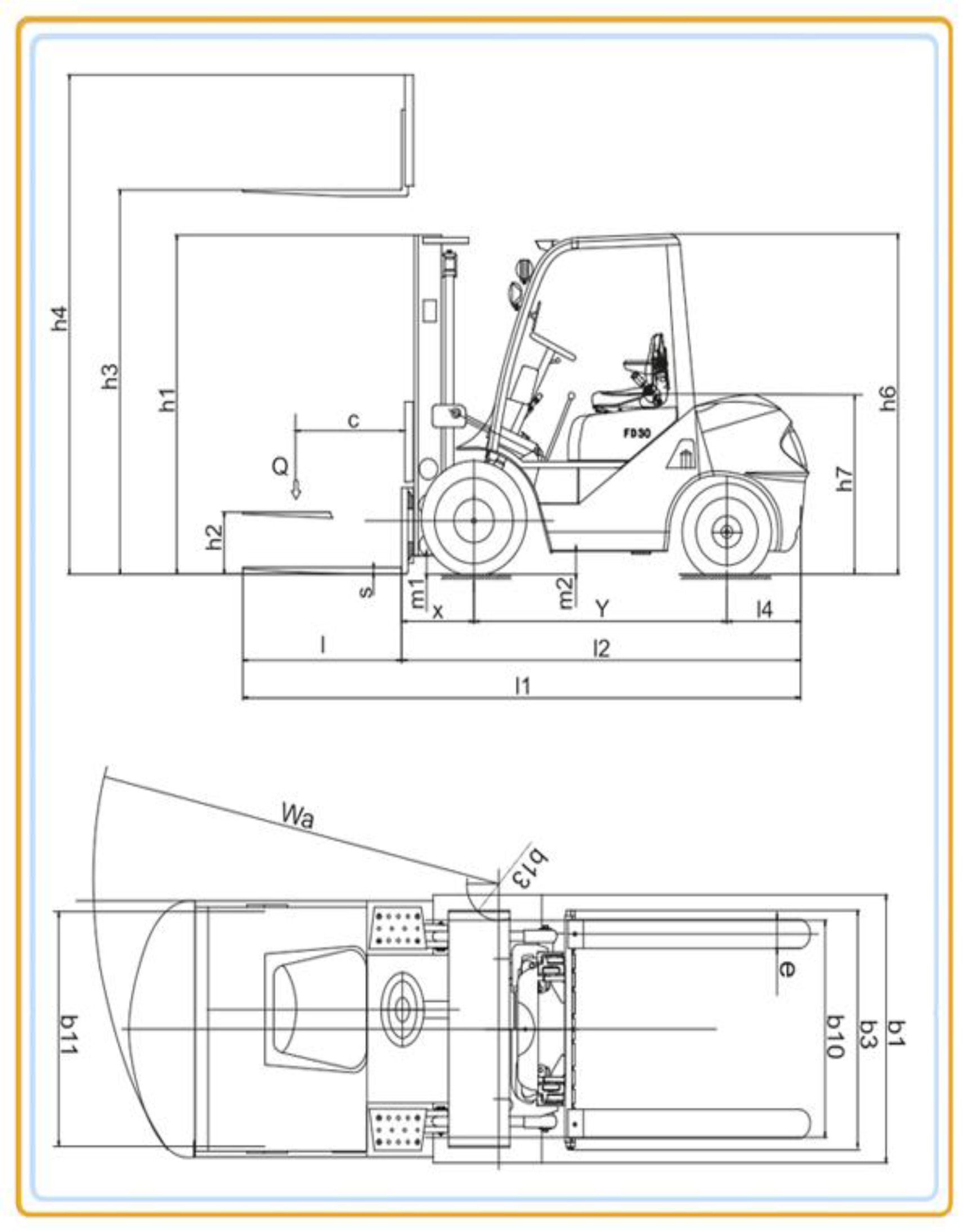

| Model | FD25/FG25 | FD30/FG30 | FD35/FG35 | ||||
| Power | Diesel | Gasoline | Diesel | Gasoline | Diesel | Gasoline | |
| Operation type | seat | seat | seat | ||||
| Capacity/rated load | Q(kg) | 2500 | 3000 | 3500 | |||
| Load centre distance | c(mm) | 500 | 500 | 500 | |||
| Lift height | h3(mm) | 3000 | 3000 | 3000 | |||
| Load distance,centre of drive axle to fork | x(mm) | 485 | 485 | 485 | |||
| Wheelbase | Y(mm) | 1700 | 1700 | 1700 | |||
| Service weight | kg | 3980 | 4350 | 4457 | |||
| Axle loading,laden front/rear | kg | 5702/778 | 6468/882 | 7002/955 | |||
| Axle loading,unladen front/rear | kg | 1592/2388 | 1740/2610 | 1783/2674 | |||
| Tyres type | Pneumatic/solid | Pneumatic/solid | Pneumatic/solid | ||||
| Tyre size, front | mm | Φ676*190 / Φ657*172 | Φ710*220 / Φ695*218 | Φ710*220 / Φ695*218 | |||
| Tyre size, rear | mm | Φ540*160 / Φ527*150 | Φ590*175 / Φ577*162 | Φ590*175 / Φ577*162 | |||
| Wheels,number front rear(x=driven wheels) | 2x2 / 4x2 | 2x2 / 4x2 | 2x2 / 4x2 | ||||
| Tread, front | b10(mm) | 970 | 1000 | 1000 | |||
| Tread, rear | b11(mm) | 970 | 970 | 970 | |||
| Tilt of mast//fork carriage forward/backward | Grad | 6°～12° | 6°～12° | 6°～12° | |||
| Height, mast lowered | h1(mm) | 2040-2654 | 2070-2684 | 2070-2684 | |||
| Free lift | h2(mm) | 0 | 0 | 0 | |||
| Height, mast extended | h4(mm) | 4067～7067 | 4250～7250 | 4250～7250 | |||
| Height of overhead guard (cabin) | h6(mm) | 2060 | 2090 | 2090 | |||
| Seat height / stand height | h7(mm) | 1052 | 1064 | 1064 | |||
| Overall length | l1(mm) | 3650 | 3750 | 3860 | |||
| Length to face of forks | l2(mm) | 2580 | 2680 | 2790 | |||
| Overall width | b1(mm) | 1150 | 1205 | 1225 | |||
| Fork dimensions | s/e/l(mm) | 40/130/1070 | 45/130/1070 | 45/140/1070 | |||
| Fork carriage DIN 15173,class/type A,B | 2A | 3A | 3A | ||||
| Fork - carriage width | b3(mm) | 1160 | 1200 | 1200 | |||
| Ground clearance,laden,below mast | m1(mm) | 125 | 135 | 135 | |||
| Ground clearance,centre of wheelbase | m2(mm) | 135 | 150 | 150 | |||
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 3790 | 3950 | 4000 | |||
| Aisle width for pallets 800x1200 lengthways | Ast(mm) | 3590 | 3750 | 3800 | |||
| Turning radius | Wa(mm) | 2190 | 2350 | 2400 | |||
| Internal turning radius | b13(mm) | 875 | 902 | 902 | |||
| Travel speed, laden / unladen | km/h | 0～18 | 0～20 | 0～20 | |||
| Lift speed, laden / unladen | m/s | 460 | 450 | 400 | |||
| Lowering speed ,laden / unladen | m/s | <600 | <600 | <600 | |||
| Max. drawbar pull,laden/ unladen | N | 15120 | 17120 | 21600 | |||
| Max. gradeability,laden/ unladen | % | 20/27 | 20/27 | 20/27 | |||
| Acceleration time, laden/unladen | s | 3/4 | 2/3 | 4/5 | 3/4 | 4.5/5.5 | 3/4 |
| Engine manufacturer / type | 490BPG/C240/4TNE92 | K21/K25/491 | 490BPG/C240/4JG2/4TNE92/4TNE98 | K25/491 | 490BPG/498BPG/4JG2/4TNE98 | K25/491 | |
| Engine power acc. To ISO 1585 | kW | 37/34.3/34.7 | 31/37.4/41 | 37/34.3/44.2/34.7/44.3 | 37.4/41 | 37/36.8/44.2/44.3 | 37.4/41 |
| Rated speed | R/Min | 2650/2500/2450 | 2300/2300/2500 | 2650/2500/2450/2450/2300/2500 | 2300/2500 | 2650/2400/2450/2300 | 2300/2500 |
| Type of drive control | mechanical/hydraulic | mechanical/hydraulic | mechanical/hydraulic | ||||
| Operating pressure for attachments | Mpa | 16.5 | 16.5 | 16.5 | |||
| Sound level at the driver's ear acc.to DIN 12053 | dB(A) | <82 | <82 | <82 | |||
| Remark：The data based on the lifting height 3000mm; Lifting height from 3000mm to 6000mm are available. | |||||||
