Safety & Productivity:
· Two pallets handled at one time.
· Side-way battery with roll-outsystem is very convenient to replace batteries.The battery
upside cover makesyou easy to fill the battery.
· Full free lift.
· Emergency reversing device.
· Built-in pressure relief valve protects the truck from overloads.
· Emergency power disconnect.
· Low speed switch in the handle.
· Stepless speed control.
Structural:
· Low Center of Gravity ensures the stable operation.
· Sping-loaded castors improve lateralstability on uneven floors and enhance
truck performance and service life.
· Heavy duty German masts.
Serviceability:
· Low battery protection setting prolongs the battery use time.
· CANbus technology.
· Hall-effect throttle controleliminates wear components and requires no
mechanical adjustment.

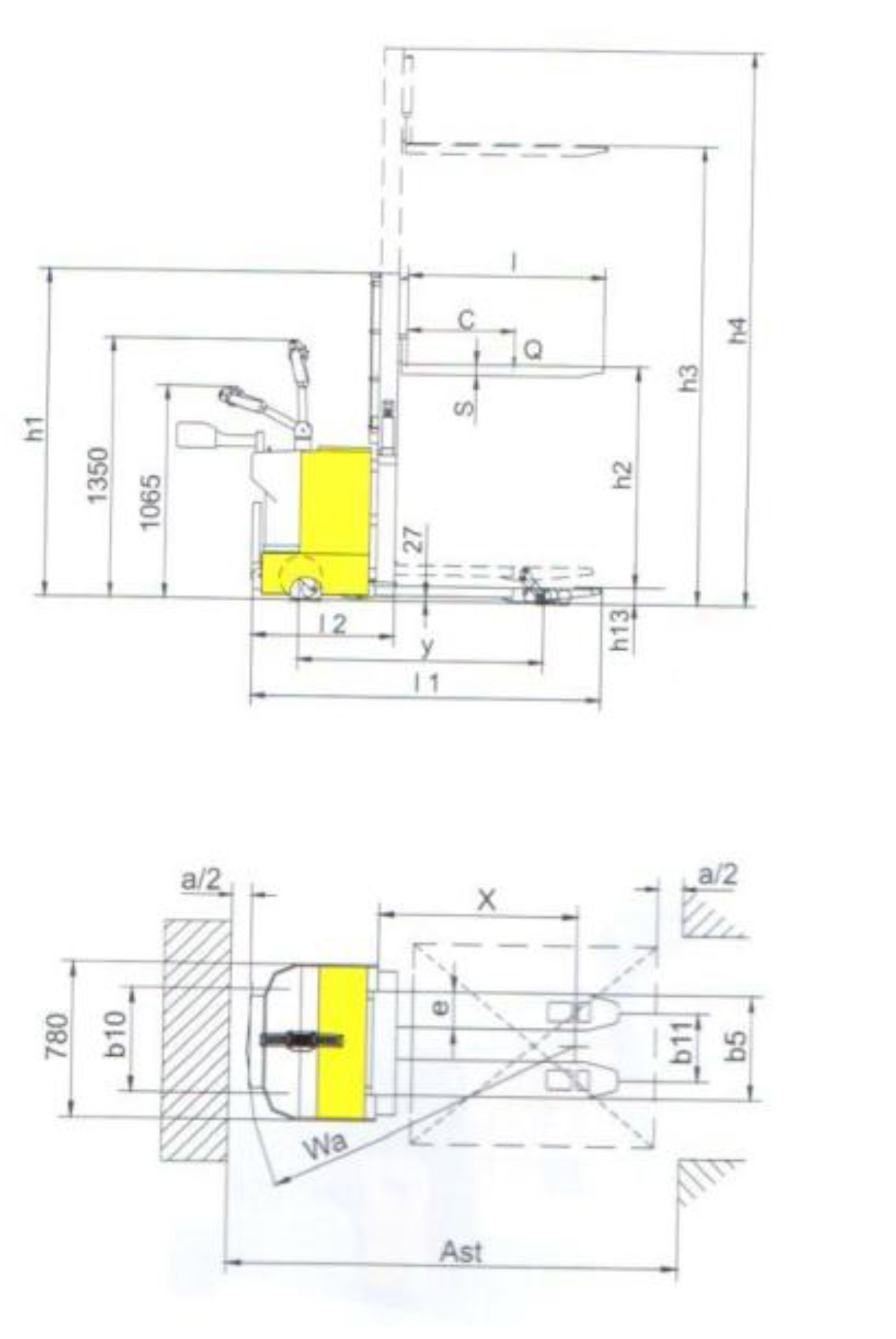

| Model | CDD10S | CDD15S | |
| Drive type | electric | electric | |
| Operation type | standing | standing | |
| Load capacity/rated load | Q(kg) | 1000 | 1500 |
| Load centre distance | c(mm) | 500 | 500 |
| Load distance,centre of drive axle to fork | x(mm) | 844 | 844 |
| Fork height, lowered | h13(mm) | 95 | 95 |
| Wheelbase | Y(mm) | 1420 | 1440 |
| Axle loading,laden front/rear | kg | 918/942 | 1168/1352 |
| Axle loading,unladen front/rear | kg | 639/221 | 755*265 |
| Tyres | polyurethane | polyurethane | |
| Tyre size, front | mm | Φ250x80 | Φ250x80 |
| Tyre size, rear | mm | Φ80x70 | Φ80x70 |
| Additional wheels(dimensions) | mm | Φ150x60 | Φ150x60 |
| Wheels,number front rear(x=driven wheels) | 1x+2/4 | 1x+2/4 | |
| Tread, front | b10(mm) | 626 | 626 |
| Tread, rear | b11(mm) | 470 | 470 |
| Height, mast lowered | h1(mm) | 2082/1852/2102/2252/2352 | 2082/1852/2102/2252/2352 |
| Free lift | h2(mm) | 1600/1300/1555/1705/1805 | 1600/1300/1555/1705/1805 |
| Max. lift height | h3(mm) | 1600/2500/3000/3300/3500 | 1600/2500/3000/3300/3500 |
| Height, mast extended | h4(mm) | 2082/3062/3562/3862/4062 | 2082/3062/3562/3862/4062 |
| Initial lift] | h5(mm) | 120 | 120 |
| Height of tiller in drive position min./max. | h14(mm) | 1065/1350 | 1065/1350 |
| Overall length | l1(mm) | 1910 | 1930 |
| Length to face of forks | l2(mm) | 810 | 830 |
| Overall width | b1(mm) | 780 | 780 |
| Fork dimensions | s/e/l(mm) | 60/180/1100 | 60/180/1100 |
| Width overall forks | b5(mm) | 650 | 650 |
| Ground clearance,centre of wheelbase | m2(mm) | 27 | 27 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2567 | 2587 |
| Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2502 | 2522 |
| Turning radius | Wa(mm) | 1730 | 1750 |
| Travel speed, laden / unladen | km/h | 4/5 | 4/5 |
| Lift speed, laden / unladen | m/s | 0.08/0.1 | 0.08/0.1 |
| Lowering speed ,laden / unladen | m/s | 0.15/0.12 | 0.15/0.12 |
| Max. gradeability,laden/ unladen | % | 6/10 | 6/10 |
| Service brake | Electromagnetic | Electromagnetic | |
| Battery voltage,nominal capacity K5 | V/Ah | 24/240 | 24/240 |
| Battery weight | kg | 220 | 220 |
| Battery dimensions l/w/h | mm | 650x249x500 | 650x249x500 |
| Sound level at the driver's ear acc.to DIN 12053 | dB(A) | 70 | 70 |
| Service weight(with battery) | kg | 860/880/890/900/910 | 1020/1040/1050/1060/1070 |
