    aluminum tube straightening mc

    aluminum tube straightening mc

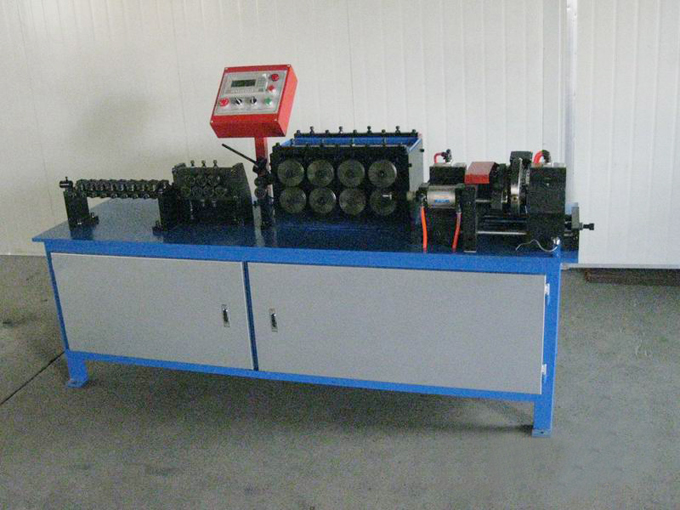

    Product name:aluminum tube straightening mc
    Category:Aluminum tube straightening and cutting machine


    Inquiry

    Products

     For aluminum tube decoiler, straightening and cutting,

    tube OD 4.0—8mm,8-16.00mm,

    thickness:0.50- 1.20mm


                                                                     aluminum tube straightener machine

    No

    Item

    Detail

    Memo

    1

    tube diameter range

    OD 4.0—8.0mm

    /

    2

    tube thickness range

    0.50-0.80mm

    /

    2

    tube straightening length range

    100-50000mm

    /

    3

    straightening working speed

    >=45meter/minute

    different as tube size

    4

    Material collection shelf

    prepared by the user

    /

    5

    length cutting tolerance

    +/-1mm

    /

    6

    power supply

    380V/50Hz

    3 phases 4 wires type

    7

    motor power

    2.2KW, rev1440/rpm

    Material feeding motor

    0.75KW, rev1440/rpm

    cutting motor

    8

    the pressure the air compressor

    1MPa

    Just need 0.6-0.8MPa in working

    9

    dimension

    2300X1000X1350mm

    Not included the material collection shelf

    10

    weight

    520KG

    /
