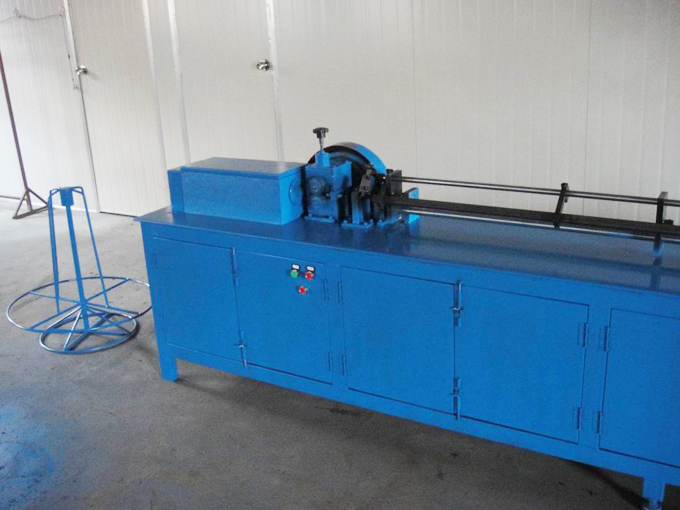

STEEL WIRE STRAIGHTENING AND CUTITNG MACHINE
MODEL NO.: HLXZJ-2A
widely used in refrigeration condenser, electrical fan and bicycle basket industry.
available for carbon steel wire, alloy steel wire, stainless steel wire
there are several series machine to processs the wire : 0.90-1.6mm, 1.0-2.0mm; 2.0-7.0mm
No | Item | Detail | Memo |
1 | steel wire diameter range | OD 0.90—1.6mm | / |
2 | available steel wire straightening length range | 200-1600mm | / |
3 | straightening working speed | >=35meter/minute | different as wire diameter and length |
4 | material-shelf carrying capacity of steel wire coils | <=60KG | Do not more than 80KG |
5 | length cutting tolerance | 0.2-0.3mm | / |
6 | power supply | 380V/50Hz | 3 phases 4 wires type |
7 | motor power | 1.1KW,rev 2830/rpm | straightening motor Y802-2 |
0.75KW,rev 920/rpm | pulling motor Y90S-6 | ||
8 | the right pressure get from the air compressor | 0.4-0.6MPa | 0.5MPa better |
9 | dimension | 2700X850X1100mm | included the material-shelf |
10 | weight | 330KG | included the material-shelf |
