    high speed steel wire straightening and cutting mc

    high speed steel wire straightening and cutting mc
    Product name:high speed steel wire straightening and cutting mc
    Category:high speed steel wire straightening and cutting ma


    Inquiry

    Products

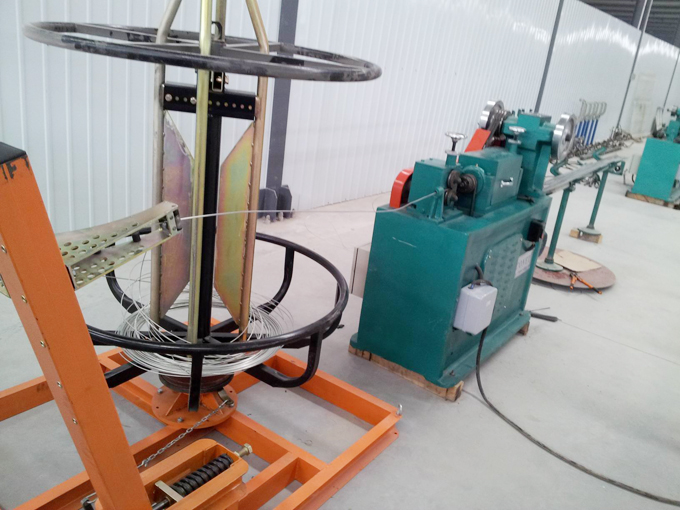

    high speed steel wire straightening machine


    widely used on refrigeration, electric fan, bicycle, wire net industry

    high technique ,precision cutting system,easy to operate, high speed around 110 meter/minute

    suitable for carbon steel wire, alloy steel wire, stainless steel wire .


    Spcification of steel wire straightening machine CT 1.6-6.0


    Name

    Steel Wire straightening and cutting machine



    Power source

    380V /220V, 50Hz

    Model

    CT1.6-6

    Series NO.

    CT104

    Diameter

    φ1.6—φ6mm

    Standard

    GB/T 8525—87

    Cutting length

    150— 4000mm

    Insulation Grade

    Grade F

    Straightness

    2mm / m

    Overall dimension

    Main machine

    1450*750*1200

    Decoiler

    1350*1188*1612

    Cutting tolerance

    1mm

    Weight

    Main machine

    900kg

    Decoiler

    200kg

    Straightening speed

    110m / min

    Production date



    Cutting speed

    600 times / min

    Country of Origin

    China

    Rated Power

    5.5KW

    Note: approval

    Fixed length Cutting method

    Mechanical






















    Specification of decoiler


    Name

    Wire decoiler

    Model

    350-700-1T-Z

    Wire Diameter

    φ1—φ8mm

    Max. loading capacity

    1000kg

    Wire coil inner diameter

    350mm-700mm (multiples by 50mm)

    Wire coil outer diameter

    ≤1000mm

    Break mode

    Instant break

    Overall dimension

    1450*750*1200

    Weight

    200kg

    Series NO.

    350-700-1T-Z-104

    Production date



    Note: approval
