    steel tube bending machine

    steel tube bending machine
    Product name:steel tube bending machine
    Category:steel tube bending machine


    Inquiry

    Products

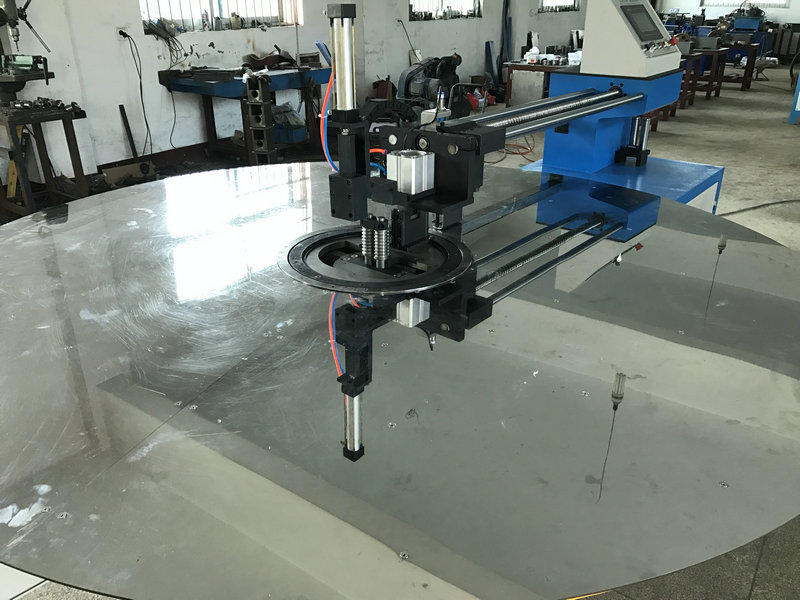

    AUTOMATIC    STEEL    TUBE    BENDING    MACHINE
    PARAMETER    TECHINIQUE
    MODEL: ZDWG02

    No

    menu

    parameter

    note

    1

    Diameterof tube

    φ4.76mm



    May desig for 4.76—8.00mm available

    2

    Tube applicable

    Steel tube,copper tube

    Mild welded steel tube better

    3

    Length range of tube feeding for one time

    0~1000mm

    once feeding length Max 1000mm, can go several times, if length more than 1000mm

    4

    Angle of bending

    0°~180°

    /

    5

    Diamter of working table

    OD2200MM

    OD2200mm

    6

    Radius of bending

    R25 mm

    R10-50mm

    7

    Max Pieces of bending tubes

    4.76mm tube 16 pieces max

    It is better to match 16 pieces, can fix them tightly

    8

    Max No. Of bending for continue working once

    100 times

    As requriement



    9

    Power source

    Three phase three wires 380v/50hz

    /

    10

    The output power

    2 units Mitsubishi servomotor

    1 unit servomotor for tube feeding in power 2 KW



    1 unit servomotor for tube bending in power 1.5 KW



    11

    PLC model

    1 unit Mitsubishi PLC

    Model No.: FX3GA40MT

    12

    Touch panel

    1 unit 7´´ panel

    WEINVIEW

    13

    Mould

    1 set mould for tube 4.76mm

    Mould for R25

    14

    air pressure required

    1 MPa

    Presión de uso 0.6-0.8mpa

    15

    Size of machine(longth×width×height)

    2500×950×1560mm

    Inlcuded the working table

    16

    Weight of machine

    1000kg

    Inlcuded the working table

    MODEL: ZDWG02
