manul high lift truck
Fature:
· Robust steel construction.
· An economical lift to handle tasks fromtransporting dies and moulds skids and pallets
. Sturdy and compact enough to fit through standarddoors and to operate in congestedareas.
· Precision engineered for smooth performance andexceptional durability.
· Lifting function operated by foot or hand controls.

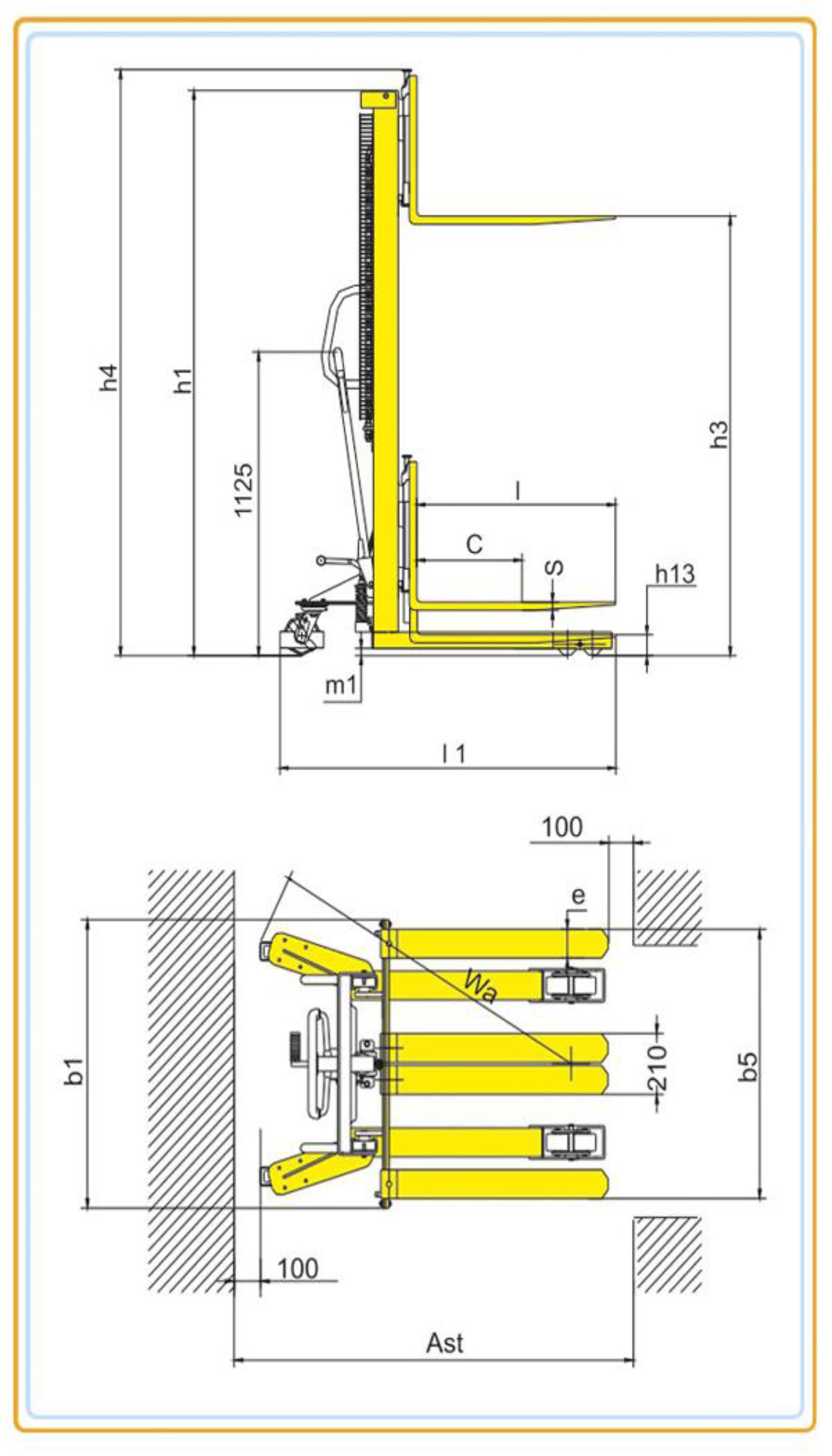

specification
| 1KG=2.205LB 1INCH=25.40MM | ||||||
| Model | SDJA | SDJA-I | ||||
| Load capacity/rated load | Q(kg) | 500 | 1000 | 1500 | 1000 | 1500 |
| Load centre distance | c(mm) | 500 | 500 | 500 | 500 | 500 |
| Fork height,lowered | h13(mm) | 90 | 90 | 90 | 90 | 90 |
| Height, mast lowered | h1(mm) | 2000 | 2085/1840 | 2090 | 2085/1840 | 2090 |
| Max. lift height | h3(mm) | 1600 | 1600/2500 | 1600 | 1600/2500 | 1600 |
| Height, mast extended | h4(mm) | 2010 | 2165/2925 | 2150 | 2165/2500 | 2150 |
| Overall length | l1(mm) | 1380/1640 | 1380/1640 | 1380/1640 | 1680 | 1680 |
| Overall width | b1(mm) | 805 | 1000/750 | 1000 | 955 | 955 |
| Fork dimensions | s/e/l(mm) | 48/100/800(1060) | 30/100/800(1060) | 30/100/800(1060) | 60/142/1070 | 60/142/1070 |
| Distance between fork-arms | b5(mm) | 200-745 | 200-950/700 | 200-950 | 295-930 | 295-930 |
| Round clearance, laden,below mast | m1(mm) | 20 | 25 | 25 | 25 | 25 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1915 | 1915 | 1915 | 1965 | 1965 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1910 | 1910 | 1910 | 1950 | 1950 |
| Turning radius | Wa(mm) | 1235 | 1235 | 1235 | 1235 | 1235 |
| Lift speed,laden/unladen | mm/time | 25 | 25 | 25 | 25 | 25 |
| Lowering speed,laden/unladen | mm/s | Manual control | Manual control | |||
| Service weight | kg | 161 | 250/316 | 280 | 240/306 | 245 |
