Standard single speed pump and light service weight, but big load capacity 3000kgs
Design on the base of 3 years service time, which can be extended up to 5 years.
Compact appearance, innovative separated rocker arms, ensure the whole truck average pressed.
Full sealed pump ,easy to maintain
Simplified spare parts, higher performance with low repair cost.
Option: 1) double speed pump.
2) nylon wheel, polyurethane wheel, rubber wheel, single fork or tandem fork rollers
3) fork length: 800mm, 900mm, 1000mm, 1100mm

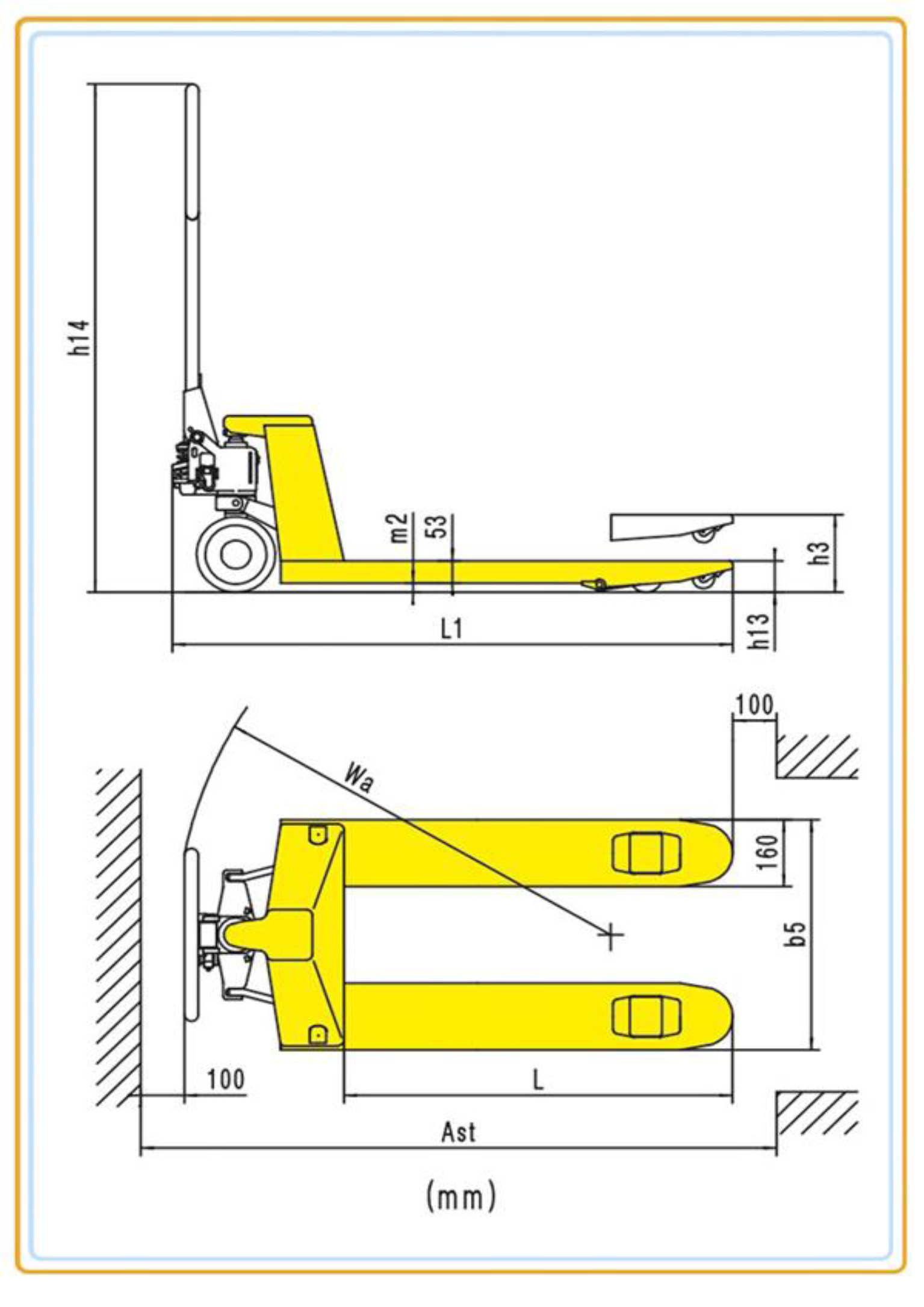

| 1KG=2.205LB 1INCH=25.40MM | |||
| Model | DF | ||
| Capacity | Q(kg) | 2500/3000 | 2500/3000 |
| Lowered fork height | h13(mm) | 85 | 75 |
| Steering wheel | mm | φ180 | φ180 |
| Fork wheel single | mm | φ80×93 | φ80×93 |
| Fork wheel tandem | mm | φ80×70 | φ80×70 |
| Max. lift height | h3(mm) | 195 | 185 |
| Total height | h14(mm) | 1233.5 | 1223.5 |
| Overall length | l1(mm) | 1528.5/1598.5 | 1528.5/1598.5 |
| Fork length | l(mm) | 1150/1220 | 1150/1220 |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
| Ground clearance,centre of wheelbase | m2(mm) | 32 | 22 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1728.5/1798.5 | 1728.5/1798.5 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1778.5/1798.5 | 1778.5/1798.5 |
| Turning radius | Wa(mm) | 1244.5/1314.5 | 1244.5/1314.5 |
| Service weight | kg | 65-77 | 65-77 |
Remark: (1) Capacity 2000kg available. | |||
(2) Special size for width and length can be made according to customer’s requirement.
| |||
