Model: JF
Features:
Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
Support legs come into operation automatically.It prevents the unit from moving when the forks are raised to keep the safety of the operator.
Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.210 degree turning radius.
2 lateral stabilizers when raised ensure good stability.
| 1KG=2.205LB 1INCH=25.40MM | |||

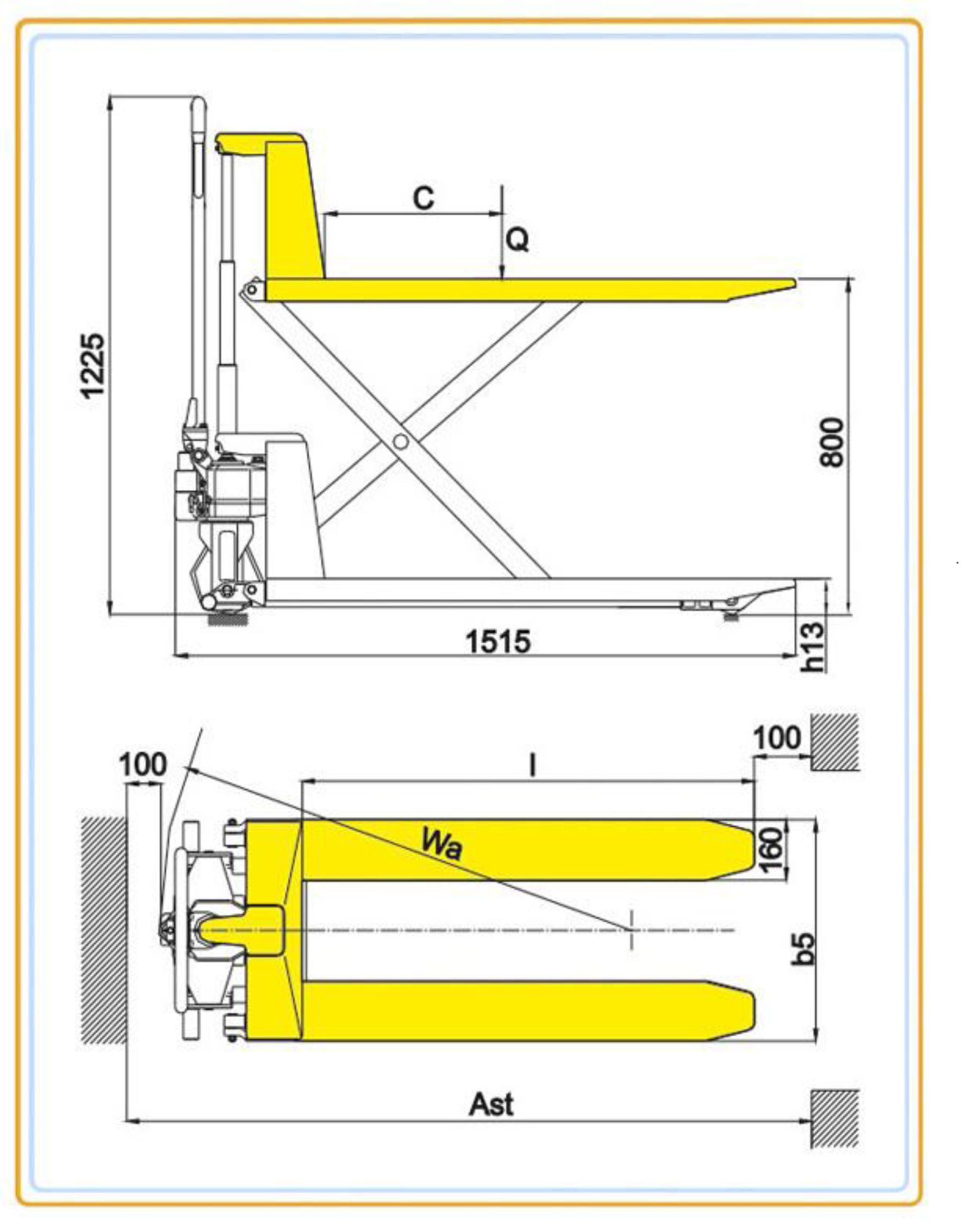

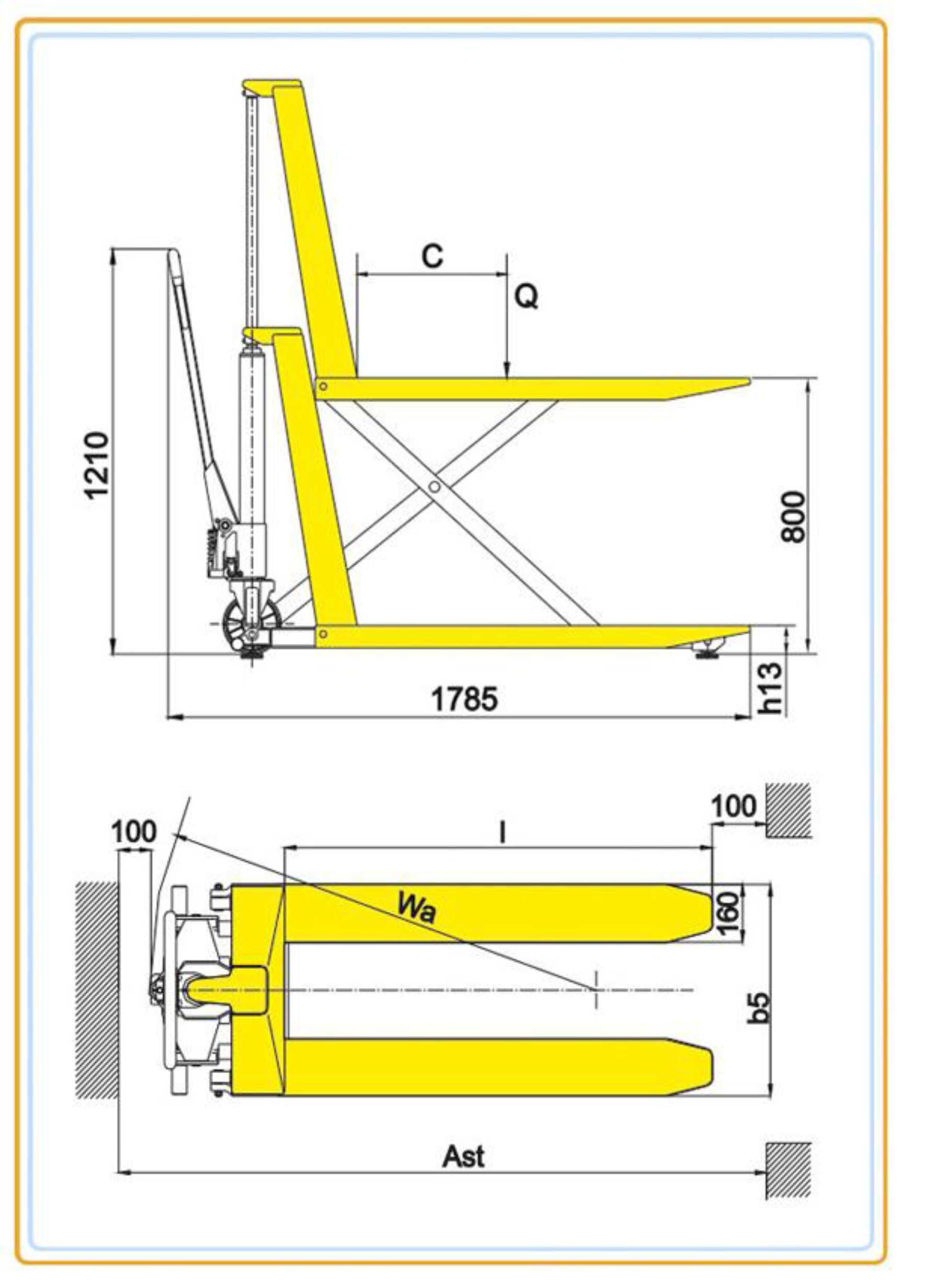

| Model | JF | JF7 | |
| Capacity | Q(kg) | 1000 | 1000 |
| Lowered fork height | h13(mm) | 85 | 85 |
| Steering wheel | mm | Φ180*50 | Φ180*50 |
| Fork roller | mm | Φ74*50 | Φ74*50 |
| Max. lift height | mm | 800 | 800 |
| Fork length | l(mm) | 1150 | 1220 |
| Width overall forks | b5(mm) | 520 / 550 / 685 | 550 / 685 |
| Aisle width for pallets 1000x1200 | Ast(mm) | 1715 | 1985 |
| Aisle width for pallets 800x1200 | Ast(mm) | 1765 | 1985 |
| Turning radius | Wa(mm) | 1360 | 1670 |
| Service weight | kg | 108 - 112 | 112 |
